Audiophile Grade Resistors 1000W Watt Aluminum Housed Metal Shell
Case Wirewound Power Resistor
For aging test power supply; inverter; automation equipment;
ACOUSTICS; frequency divider and high requirements in bad
industrial equipment use.
Features
Aluminum shell resistance (golden aluminum shell) series, the shell
is made of aluminum alloy
A heat radiating groove on the surface
Small size of large power
High temperature resistant
Strong overload capacity with high weather resistance
High precision, low standard induction resistance, high stability,
strong architecture
Good flexibility, multiple choice, good for machinery protection,
more convenient for users to install.
Payment Information:
We accept T/T & Western Union & PayPal & Escrow service.
Shipping:
1. We will ship the items within 3 working days after the payment
confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us
directly and we will use your preferred ways. For the Countries &
Regions where EMS cannot deliver, please choose other shipping
ways.
Refund & Replacement:
1. We appreciate your business and offer an instant 7 days return
policy. (7 days after receiving the items).
2. If the items you purchase from our store are not of perfected
quality, that is they don't work electronically to manufacturers
specifications, simply return them to us for replacement or refund.
3. If the items are defective, please notify us within 3 days of
delivery.
4. Any items must be returned in their original condition to
qualify for a refund or replacement.
5. The buyer is responsible for all the shipping cost incurred.
| Type | Power Rating at 25℃(W) | Resistance
Range(Ω) | Dimensions(mm) | Tolerance | T.C.R |
| Resistor | Heat radiator
Aluminum |
| On std. heatsink | No std. heatsink | A ±1.0 | B ±1.0 | L ±2.0 | H ±1.0 | C ±1.0 | E ±1.0 | F ±1.0 | M ±0.5 | N ±0.5 | d1 ±0.5 | d2 ±0.0 | Surface area
(cm²) | Thickness
(mm) |
| RHA | 5 | 3 | 0.1Ω—1K | 15.5 | 16 | 36.5 | 8 | 8.5 | 11.4 | 12 | 4.4 | 1.5 | 1.5 | 2.2 | 415 | 1 | ±1%
±2%
±5%
±10% | ±20
±50
±100 |
| 10 | 8 | 0.1Ω—1.5K | 19.5 | 21 | 40.5 | 10 | 11.2 | 14 | 16 | 5 | 2 | 2 | 2.5 | 415 |
| 20 | 13 | 0.1Ω—10K | 27 | 27 | 48 | 13 | 14.3 | 18.3 | 20 | 7 | 2 | 2 | 3.5 | 535 |
| 25 | 13 | 0.1Ω—10K | 27 | 27 | 48 | 13 | 14.3 | 18.3 | 20 | 7 | 2 | 2 | 3.5 | 535 |
| 30 | 15 | 0.1Ω—27K | 34 | 29 | 55 | 15.5 | 16.3 | 25 | 22 | 7.3 | 2 | 2 | 3.5 | 535 |
| 50 | 20 | 0.1Ω—33K | 50 | 29 | 71 | 15.5 | 16.3 | 40 | 22 | 7.3 | 2 | 2 | 3.5 | 995 |
Derating Curve:
Electrical Performances:
Pulse Engery:

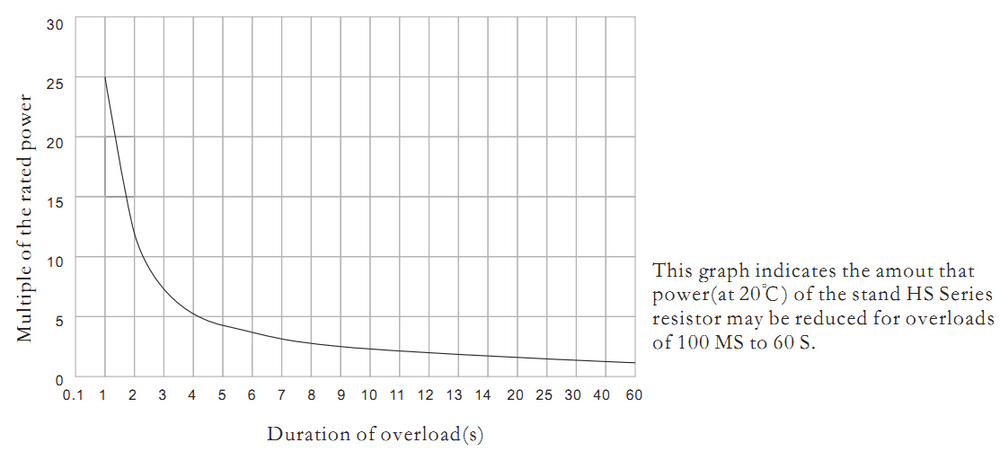

Powe Overload:
Surface Temperature Rise:
