Brand Name : | Shuguang |
Model Number : | 5Y3GT |
Certification : | CE/ROHS/ISO9001:2008 |
Price : | Negotiable |
Payment Terms : | Paypal, T/T, Western Union |
Supply Ability : | 1000pcs/month |
Delivery Time : | 1-3 working days |

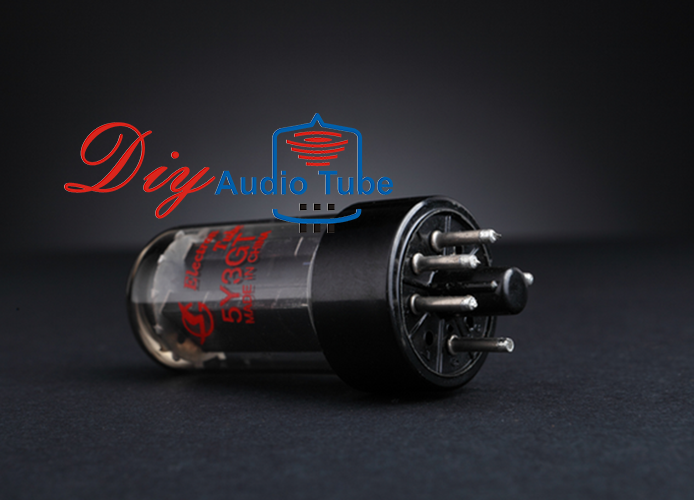

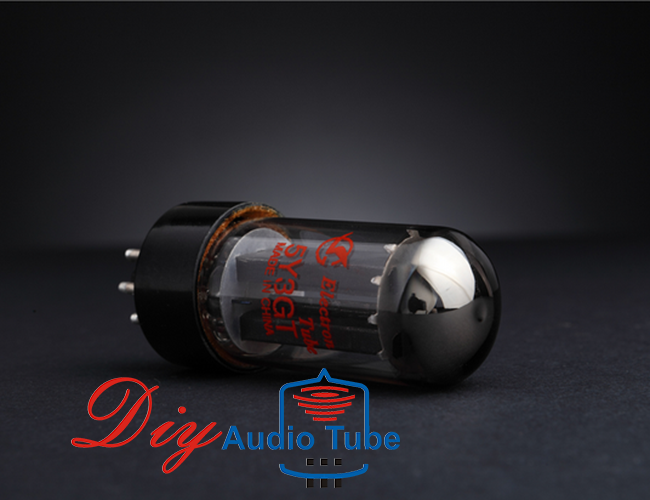

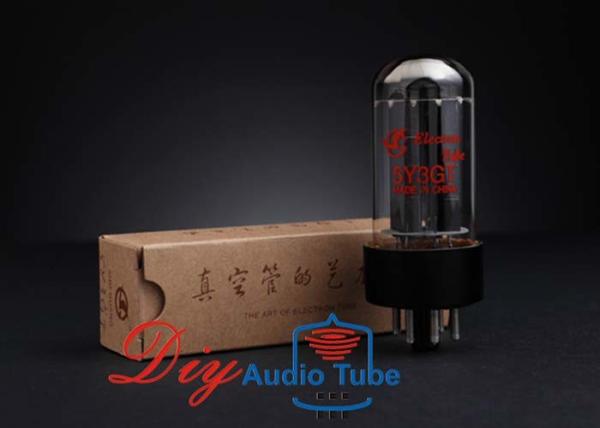

Electronic Vacuum Tube Shuguang 5Y3GT rerectifier vacuum tubes replace 5Y3 5Z4PA 5Z4
Tube type: Full-Wave Vacuum Rectifier Power-supply
Identical to 5Y3GT = CV1856 = VT-197A = 5Y3GT/G
Similar Tubes
Other shape (e.g. bulb type):
5Y3G
Normally replaceable-slightly different:
5Z2P
Other class quality (otherwise equal):
5Y3WGTA
Different connections:
5Y4GT
Other base:
5AZ4
Predecessor Tubes 80 5Y3G
Successor Tubes 5AZ4 5Y3GT/G
Base Octal (Int.Octal, IO) K8A, USA
Was used by Radio/TV-reception etc.
Filament Vf 5 Volts / If 2 Ampere / Direct /
Description
Glass octal type used in power supply of radio equipment having
moderate dc requirements. Filament 5 volts, 2 amperes. Same
characteristica as the 5AZ4. The indirectly heated 6AX5GT has
similar data except the heater.
![]() |
