Stereo Vacuum Tubes PSVANE Vacuum Tubes HIFI 2A3C replace 2A3 2A3B for AMP DIY

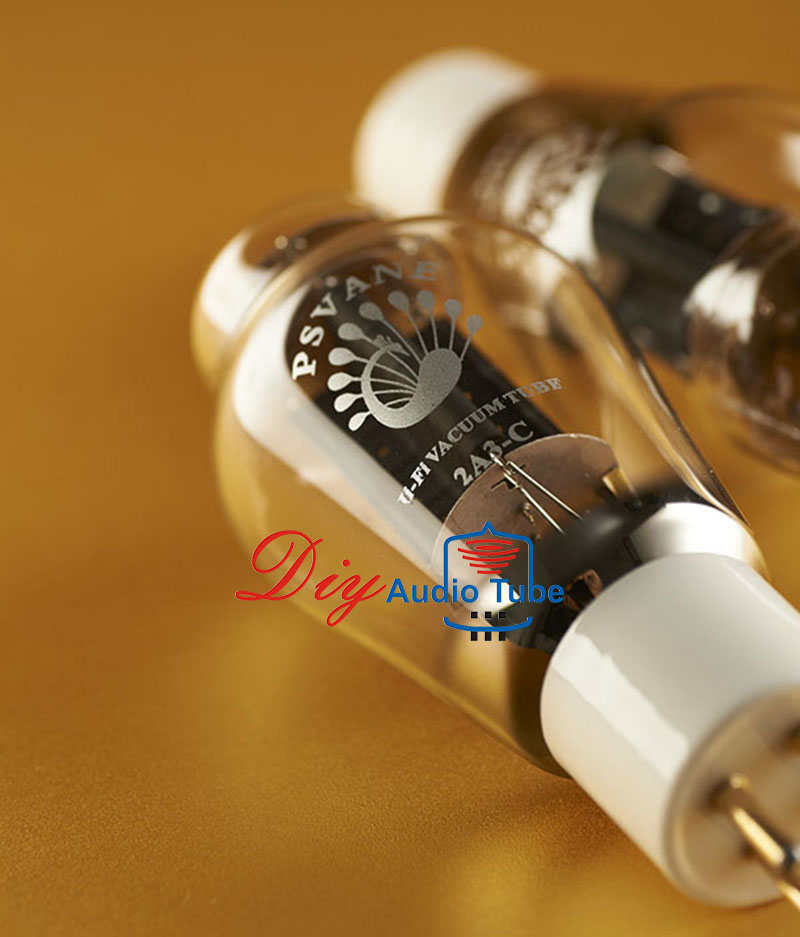

2A3C

HIFI series: classic style, exquisite craft, perfect and stable sound performance, the world’s largest HIFI series seller, best choice for you.

2A3C is direct-heated cathode middle- power double triode, and it is used as class A1, AB1 amplification.

Heater

Uf ………………………… 2.5 V
If………………………… 2.5 A

Maximum Rating
Ua…………………………300 V
Pa…………………………15 W

Rg
with cathode bias…………………………0.5 MΩ
with fixed bias…………………………0.05 MΩ

Direct Interelectrode capacitances
input………………………… 7.5 PF
output…………………………16.5 PF
grid to plate…………………………5.5 PF

Static parameter
Ua………………………… 300 V
-Ug………………………… 45 V
Ia………………………… 60 mA
Gm………………………… 5.25 mA/V
ri………………………… 0.8 kΩ
μ………………………… 4.2
Pout…………………………3.5 W

Recommended Operating Conditions (reference value)
Class A1, single tube (fixed bias)
Ua………………… 250 V
-Ug……………………45 V
RL……………………2.5 kΩ
Ia(0)…………………60 mA
Gm……………………5.25 Ma/V
ri……………………0.8 Kω
μ……………………4.2
Pout……………………3.5 W
Dtot……………………5 %
Class AB1, push-full (fixed bias)
Ua……………300 300 V
-Ug……………62 Rk=780Ω V
RL……………3 5 kΩ
üg(pk)………87 110 V
Ia(0)…………80 80 mA
Ia(max.sig)…140 100 mA
Pout……………15 10 W
Dtot……………2.5 5 %

2A3 tube:
Psvane HIFI 2A3C		Psvane T-II Classic 2A3-TⅡ
Psvane T 2A3-T		Psvane T-II Premium 2A3-TⅡ
Psvane WR2A3
Shuguang Treasure 2A3C-Z		Shuguang Natural T 2A3C-T
Shuguang HIFI 2A3C		Shuguang HIFI 2A3B
