    Full Wave Rectifier Stereo Vacuum Tubes 2000ohm Load Impedance PSVANE HIFI 274B

    Ask Lasest Price
    Brand Name : PSVANE
    Model Number : HiFi 274B
    Certification : Rhos
    Price : Negotiable
    Payment Terms : Paypal, T/T, Western Union
    Supply Ability : 1000pcs/month
    • Product Details
    • Company Profile

    Full Wave Rectifier Stereo Vacuum Tubes 2000ohm Load Impedance PSVANE HIFI 274B

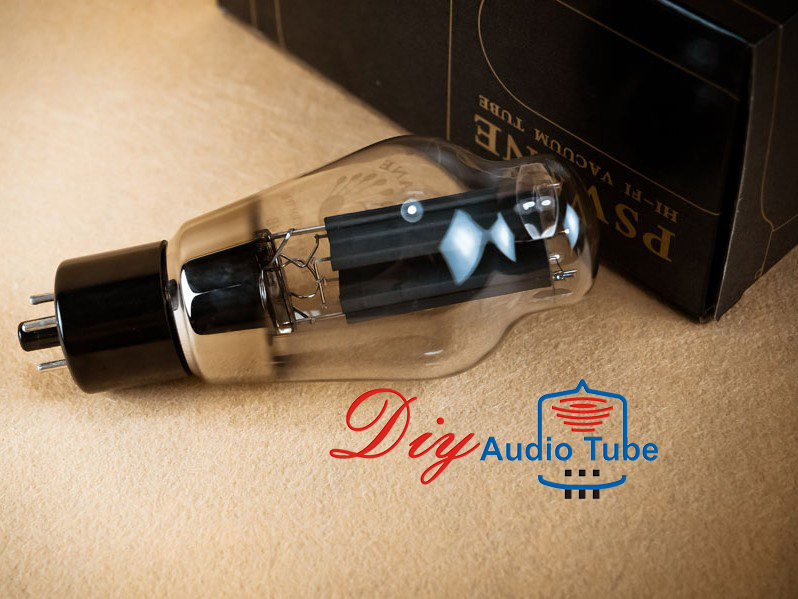

    Stereo Vacuum Tubes PSVANE HIFI 274B Vacuum Valve Tube Full-wave rectifier


    Item specifics:

    Type: Vacuum tube

    Brand: PSVANE

    Model: HIFI 274B

    Country/Region of Manufacture: China


    274B


    Hi-Fi Series: classic style, exquisite craft, comprehensive and balanced sound performance, largest sales volume over the world, best choice for you .

    Glass shell eight feet directly heated full-wave rectifier,274B is very similar with 5U4G and 5Z3P, which can be replaced by each other.


    Heater
    Uf………………5V
    If…………… 2.5A

    Maximum Rating
    anode inverse peak voltage……………1550V
    anode peak current ………750mA

    Recommend working condition

    Anode supply voltage 2×500V
    Each arm impedance 75Ω
    load impedance 2000Ω
    Filter capacitor 4μF
    Rectifier current ≧230mA
