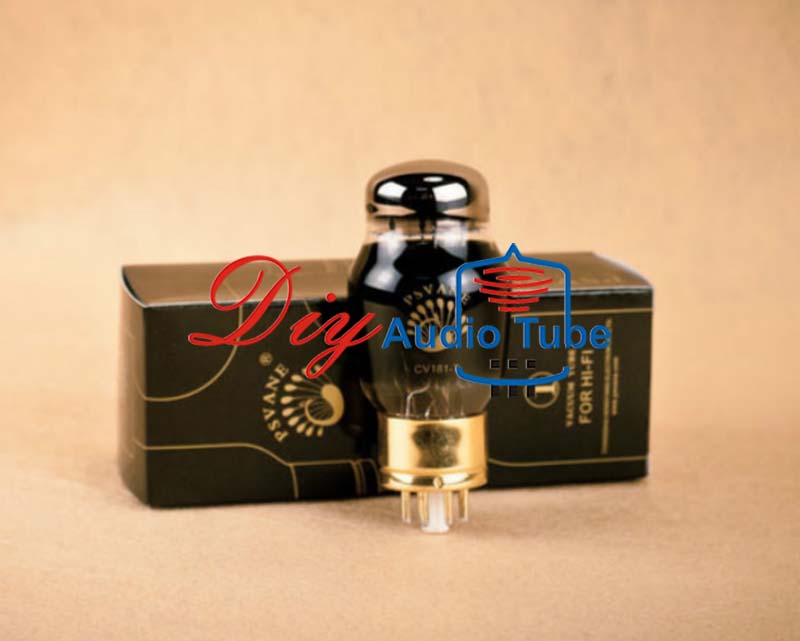

Stereo Vacuum Tubes PSVANE CV181-T Vacuum Valve Tube Replace 6SN7 6N8P CV181

( normal box, Gift box)

Psvane T CV181-T		Shuguang Treasure CV181-Z
Psvane T-II Classic CV181-TⅡ		Shuguang Natural T CV181-T
Psvane T-II Premium CV181-TⅡ		Shuguang HIFI CV181 Blue

Item specifics:

Type: Vacuum tube

Brand: PSVANE

Model: CV181-T Classic

Country/Region of Manufacture: China

Description:

1. T-Series: covering all common styles, nobility, high density and high tone quality. Moving emotion expressiveness, you’ll fall in love with it at the first sight .

2. CV181-T is double triode, used in voltage amplification circuit, Can be replaced directly by 6N8P and 6SN7GT.

Feature:

1. Heater
UH………… 6.3 V
IH ………… 0.6 A

Static Parameter
Ua ………………………… 90 250 V
Ug………………………… 0 -8V
Ia ………………………… 10 9 mA
Gm………………………… 3 2.6 mA/V
Ri ………………………… 6.7 7.7 kΩ
μ ………………………… 20 20
Ia when Ug=-12.5V _ 1.3mA
Ug whenIa=-10uA - 7 -18V

2. Maximum Rating
class A1
Ua………………………… 450V
Ik………………………… -20mA
Pa ………………………… 5w
Pa(No.1+No2) ………… 7w
Rg ……………… 1MΩ
Uhk ………………±100V
