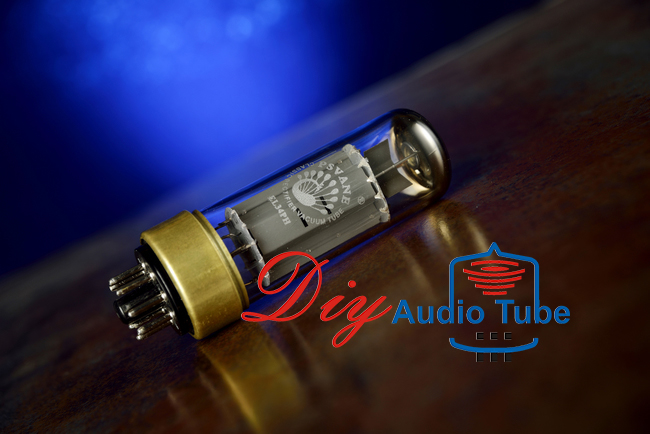

PSVANE EL34PH HIFI AMP Tube Philips Holland Replica Vacuum Tube
EL34 Valve Tubes
Item specifics:
Type: Vacuum tube
Brand: PSVANE
Model: EL34PH
Country/Region of Manufacture: China
Description:
1. The Reproducing Classic Power Amplifier EL34PH of the top vacuum
tube brand PSVANE perfectly reproduces PHILIPS iron pedestal EL34of
50s.
2. As the one of the most beautiful sound in pentode amps, EL34 was
introduces to the market at the very beginning by MULLARD (PHILIPS’
sub company) in 1953. In the history of tube-producing industry,
EL34 was designed very well and given infinite dynamism and
strength on its pressure-resistant performance. Just like we always
think of Western Electric’s WE300B when refer to 300B, as to the
top representative products of EL34, it undoubtedly is the iron
pedestal EL34 of PHILIPS produced in 50s.
3. That product of PHILIPS has perfect Frequency response
performance, proper sound density and wonderful music analytic
ability. It definitely is the king of EL34!
4. PSVANE always takes classic amp-reproducing as its own task. We
have already successfully reproduced Western Electric 300B, 275A,
212 and other good tubes in recent two years and won the high
reputation in market. Now, PSVANE, as well as the research team in
Europe, successfully developed the PSVANE EL34PH, which is
completely reproduced from the iron pedestal EL34 from Dutch
PHILIPS. The price of our products is only 15% but show you a full
top HIFI sound effect as its model (A new pair PHILIPS iron
pedestal EL34 which contains 4pcs sells 15,000 RMB in the market).
Besides, PSVANE give EL34PH its unique music feeling which is
absolutely worth your listening.
Feature:
Replica Philip EL34 Iron base
Gold plated pins
UH: 6.3V
IH: 1.5A
Anode voltage: 800V
Primary grid voltage: -100V
Secondary grid voltage: 500V
Anode dissipation power: 25W
Secondary gride dissipation power: 8W
Cathode current: 150mA
Input capacitance: 15.2PF
Output capacitance: 8.4PF
4 pins tube socket for 4 pin tubes
