Product Description

Specification For Led Emitting Diode

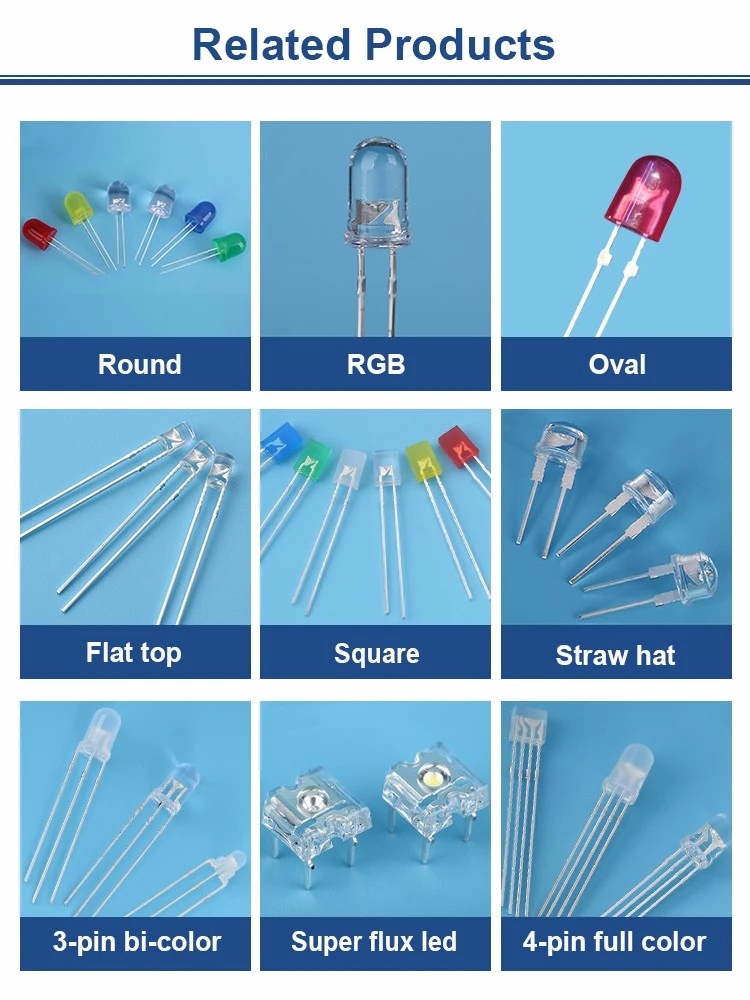

1. Lens shape: round, square, flat top, straw hat, oval, concave, super flux led piranha
2. Lens size: 3mm,4mm,5mm,8mm,10mm
3. Feet size: long feet(27/29mm) and short feet(17/19mm)
4. Lens color: water clear (transparent), color diffused, white diffused
5. Emitting color:
① 2 pin single color: red, blue, jade green(pure green), light green(yellow green), yellow, orange(amber), purple, pink, white, warm white.
② 3 pin Bi-color: red+green, red+blue, red+yellow, blue+green
③ 4 pin Full color: RGB
④ 2 pin: RGB
6. Wavelength:
red: 620-625nm blue: 460-465nm jade green: 517-520nm light green: 565-570nm
yellow: 589-591nm orange: 600-605nm purple: 395-400nm pink: 649-652nm
7. Forwarder Voltage:
① 1.8-2.1V: red, yellow, orange, light green
② 2.8~3.2V: blue, jade green, purple, pink, white, warm white.
8. Current: 20mA

9. Power: 0.06w, 0.25w, 0.5w, 0.75w.

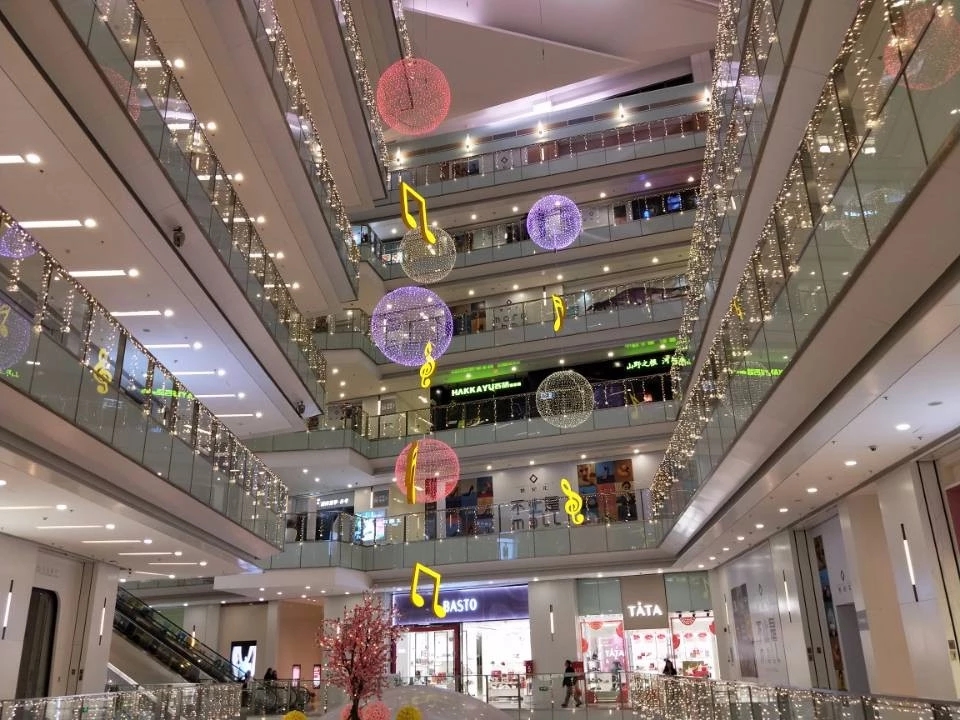

10. Application: lighting, upholster, project Building, display, traffic Light, etc.

Established in 2007 as an Electronic parts supplier, we start supplying NOS tubes to tube AMP factories since 2010. Nowadays, we are also supplying new tubes and other hifi DIY parts to tube amplifier factories and audiophiles.

Our production line:

1. Stereo Vacuum Tubes

2. Electronic Vacuum Tube

3. Vintage Vacuum Tubes

4. Vacuum Tube Sockets

5. Audio Electrolytic Capacitors

6. DIY LED Diode

7. Audiophile Grade Resistors

8. Tube AMP Board

9. Tube AMP Parts

10. Tube AMP Transformer

11. Guitar AMP Volume Knob

12. Guitar Amplifier Handles

All Hifi parts and tubes from us are sold at reasonable price with good quality, Welcome to visiting our website, we will provide best service no matter you are big HIFI products factories or individual audiophile.

Have a nice day!
